Ø5.2x20mm Fuse Blocks

Ø5.2x20mm Fuse Blocks

Please Click products below, and click Add to Inquiry List for inquiry.

Total of 14 results

PDF

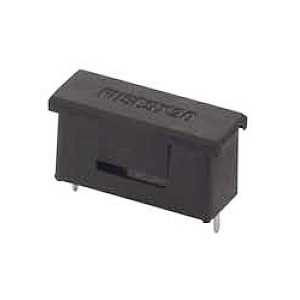

JEF-507 Ø5.2mm Fuse Block

Specifications

Insulating Body and Cover: Nylon. Contacts Clip/Terminals:Brass,tin plated.
PDF

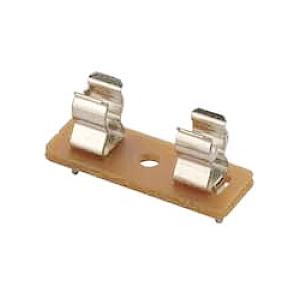

JEF-508/JEF-508S Ø5.2mm Fuse Block
Specifications
- Electrical :Rated 10A 250V
- JEF-508 Clip : Brass
- JEF-508S Clip : Phosphor Bronze
- Base :Phenolic resin
PDF

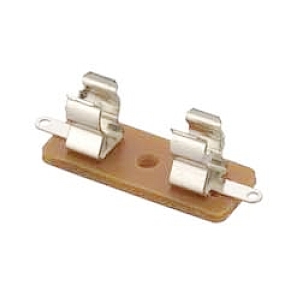

JEF-508A Ø5.2mm Fuse Block
Specifications
- Electrical :Rated 6.3A 250V
- Clip :Brass
- Base :Phenolic resin
508B

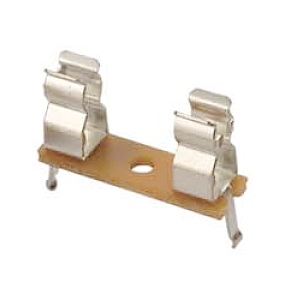

JEF-508B Ø5.2mm Fuse Block
Specifications
- Electrical :Rated 10A 250V
- Clip/Terminals: Brass C2680
- Base :Phenolic resin
PDF
JEF-510 Ø5.2x20mm Fuse Block
Specifications

Electrical Characteristics:
- Nominal Current/Voltage: 6.3A 250V
- Operating Power:1.6W
- Contact Resistance: <5mΩ
- Insulation Resistance:>100MΩ
- Dielectric Strength:>3000Vac/60sec.
Material:
- Insulation Body:Nylon+Glass fiber UL 94 V0
- Contact Fuse Clip:Brass Tin Plated
PDF

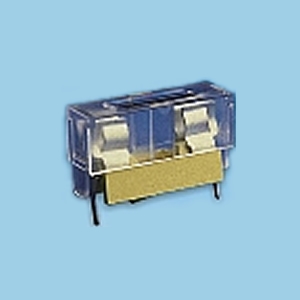

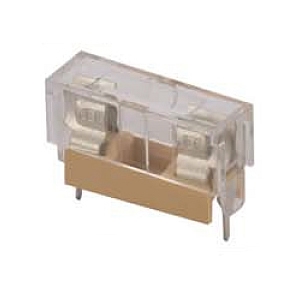

JEF-510+C Ø5.2x20mm Fuse Block + Cover
Specifications

Electrical Characteristics:
- Nominal Current/Voltage: 6.3A 250V
- Operating Power:1.6W
- Contact Resistance: <5mΩ
- Insulation Resistance:>100MΩ
- Dielectric Strength:>3000Vac/60sec.
Material:
- Insulation Body:Nylon+Glass fiber UL 94 V0
- Insulation Cover: PC
- Contact Fuse Clip:Brass Tin Plated
JEF-510A

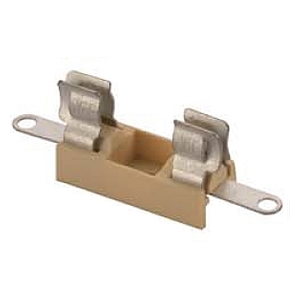

JEF-510A Ø5.2x20mm Fuse Block
Specifications

Electrical Characteristics:
- Nominal Current/Voltage: 6.3A 250V
- Operating Power:1.6W
- Contact Resistance: <5mΩ
- Insulation Resistance:>100MΩ
- Dielectric Strength:>3000Vac/60sec.
Material:
- Insulation Body:Nylon+Glass fiber UL 94 V0
- Contact Fuse Clip:Brass Tin Plated
510F

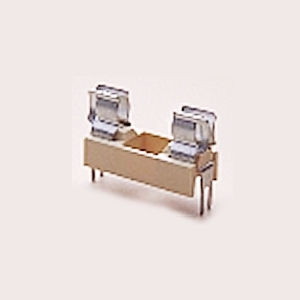

JEF-510F Ø5.2x20mm Fuse Block
PDF

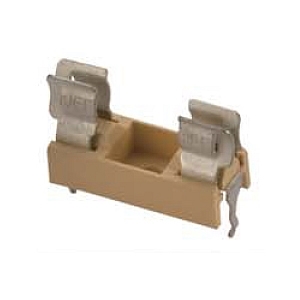

JEF-510K Ø5.2x20mm Fuse Block
Specifications

Electrical Characteristics:
- Nominal Current/Voltage: 6.3A 250V
- Operating Power:1.6W
- Contact Resistance: <5mΩ
- Insulation Resistance:>100MΩ
- Dielectric Strength:>3000Vac/60sec.
Material:
- Insulation Body:Nylon+Glass Fiber UL 94 V0
- Contact Fuse Clip:Brass, Tin Plated
PDF

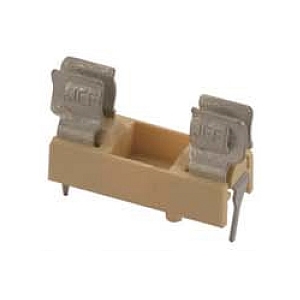

JEF-510G Ø5.2x20mm Fuse Block
Specifications

Electrical Characteristics:
- Nominal Current/Voltage: 6.3A 250V
- Operating Power:1.6W
- Contact Resistance: <5mΩ
- Insulation Resistance:>100MΩ
- Dielectric Strength:>3000Vac/60sec.
Material:
- Insulation Body:Nylon+Glass fiber UL 94 V0
- Contact Fuse Clip:Brass, Tin Plated
