• Fuse Holders

Please Click products below, and click Add to Inquiry List for inquiry.
Total of 2 results

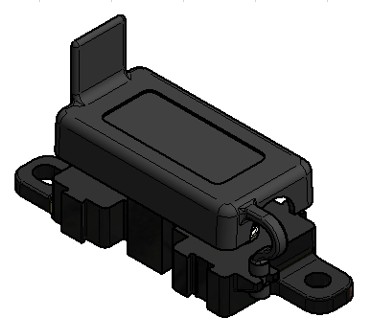

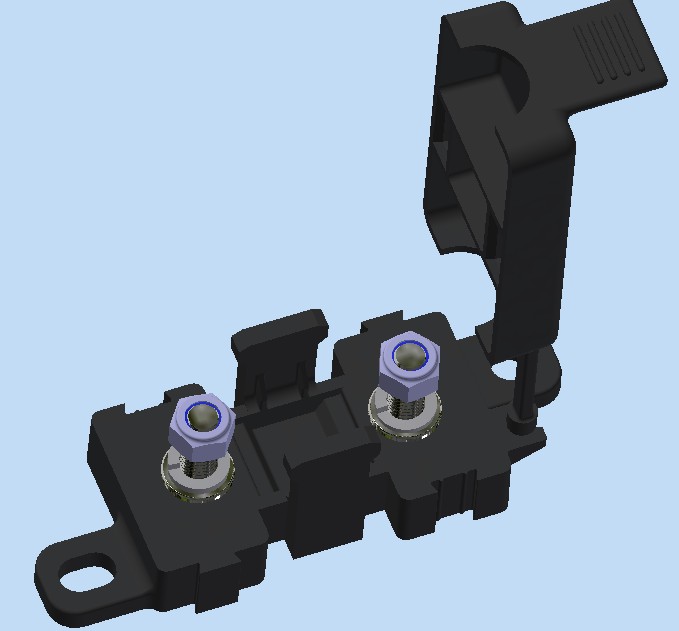

  • Bolt-Down Fuse Holder
    HFD

    Specifications

    • 1.Recommended Fuses : For AFD and AFS(Fuse-link type SF 30) Series
    • 2.Base Material: NY GF%, Black.

         M5 Studs & Split washers : Steel  Zinc-plated

         M5 Nut Material: Steel Zinc-plated  with nylock inserts Cover Material: Rubber, Black.

    • 3.Max Fuse Rating : 200A
    • 4.Max Voltage Rating: 58V
    • 5.Stud Torque: 3.0~5.0 Nm (M5 Threads) Mounting Torque: 5 Nm (M4 Bolts & Washers)
    • 6.Temperature rating: -40°C to 125°C
    • 7.Wire size : 8mm² to 35mm²

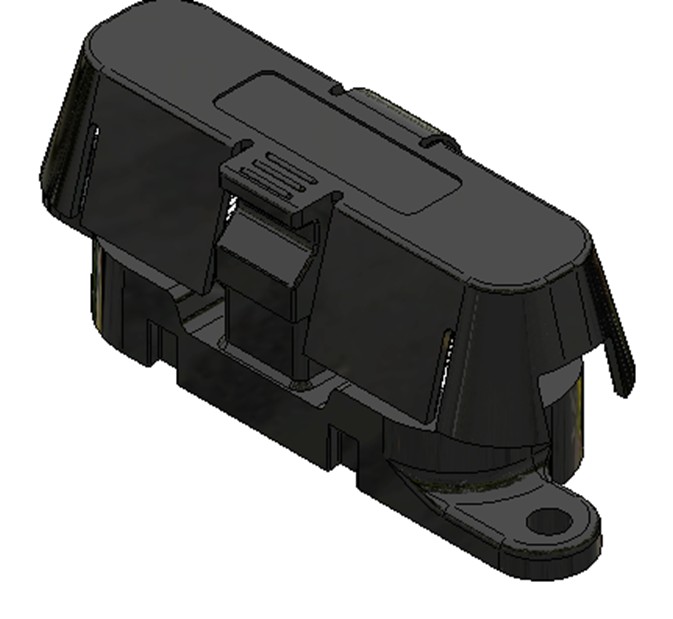

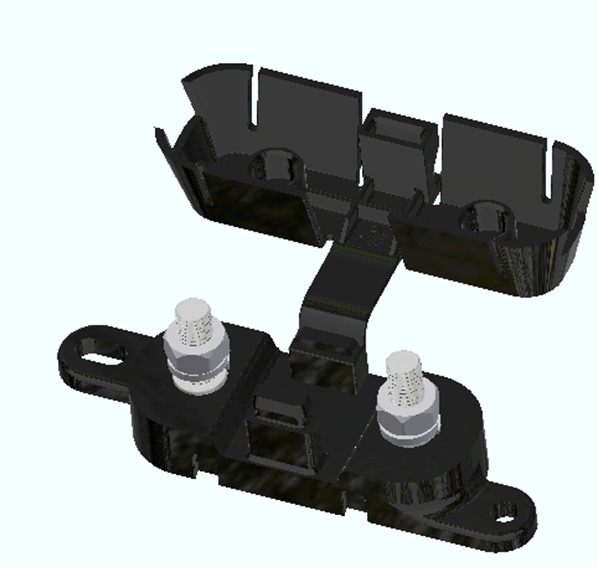

  • Bolt-Down Fuse Holder
    HFM

    Specifications

    • 1.Recommended Fuses : For AFM(Fuse-link type SF 51) Series
    • 2.Base : NY GF%, Black.M8 Studs & Nuts & Split Washers: Stainless steel
    • 3.Cover : Rubber , Black.
    • 4.Max Fuse Rating : 500A
    • 5.Max Voltage Rating: 70V DC/AC
    • 6.Recommended Torque: Mounting torque
    • (using M6 bolts and washers):10 Nm Minimum
    • 7.Temperature rating -40℃ to 125℃.
    • 8.Wire size : 8mm² to 30mm²
Total of 2 results
