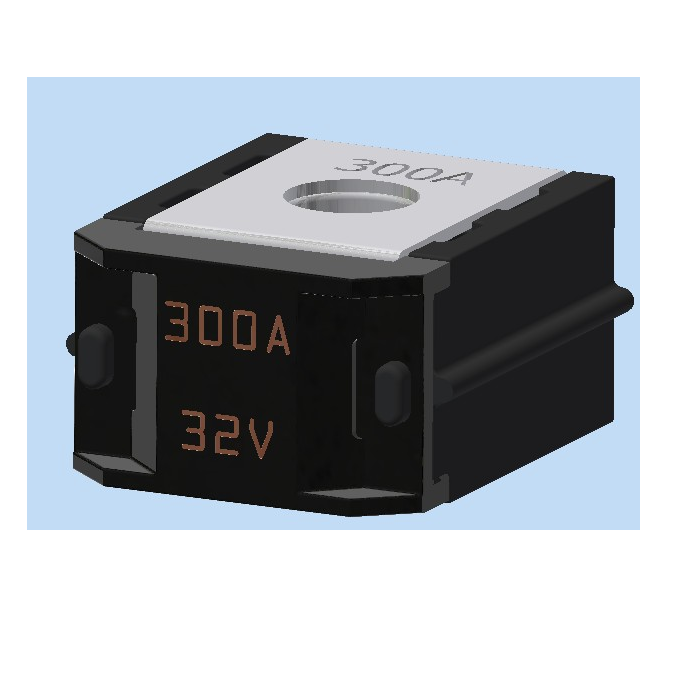

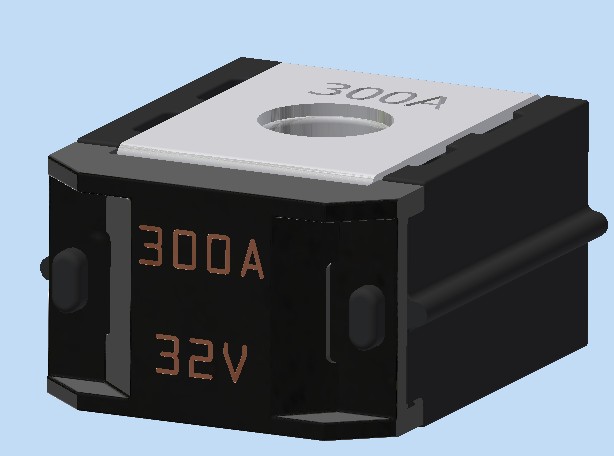

Automotive Battery Fuse

Specifications

• Operating Temperature: -40°C to 125°C
• Housing Material: PPA-GF / Black
• Insulating Tube: Out of Ceramic
• Terminal: Copper Alloy Tin Plated
• Voltage Rating: 32V DC
• Interrupting Rating: 2000A @ 32V VDC
• Mounting Torque 1/4-20UNC: Maximum 9.8Nm
• Mounting Torque M8x1.25: Maximum 14Nm
• The fuse design is optimized for a one bolt connection and can used directly

            on a battery post or busbar connection

• Electrical Characteristics Test According to ISO 8820-6
• Note:

           1.The marked"   * "denotes the fuse rated over 150A are not tested for 6 In

           2.Vlotage Drop: This teseshall be at 0.75 In for the following(350A-500A)
