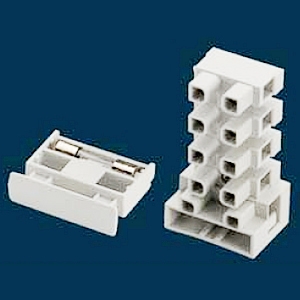

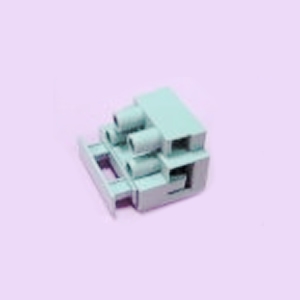

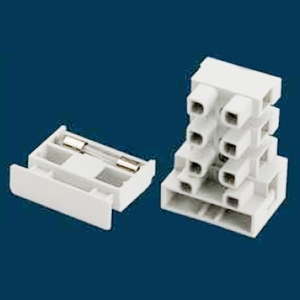

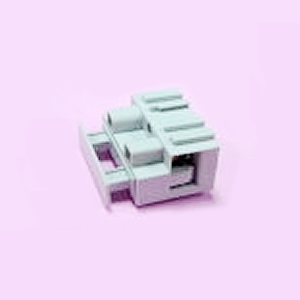

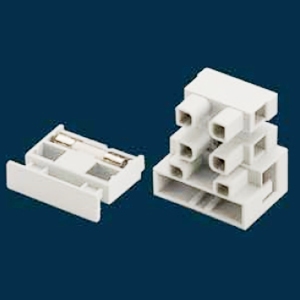

Terminal Strip Fuseholders

Specifications

• 1-5 pole therminal strip with 5x20mm fuseholder to IEC257

Specifications

• Voltage rating:Fuse holder 250Vac,terminal 450Vac
• Current rating:Fuse holder 13Amp,terminal 20Amp
• Working temperature:-20'C to 125'C
• Moulding:UL94-V0 flame retardan PA66
• Terminal:Brass,nickel plated
• Wire protector/fuse clip:Phosphor bronze
• Fuse holder:5X20 glass or ceramic


Features

• 1-5 pole terminal strip with 5X20mm fuse holder to IEC257
• Interlocking fuse holder JEF-507B1~B5
• IP20 finger protection
• Cable entry 4mm2(2.5mm2 with wire protector)
• Standard 1 to5 pole with earth screw,without wire pretectors
• Meets creepage and clearance regulrements of IEC(8mm)
• 15mm flxing pitch
