Specifications
Interrupting Ratings:
- 300 amperes at 125VDC.
- 50 amperes 125VAC.
Environmental Specifications:
- Operating Temperature: -55°C to 125°C
- Shock : Mil-STD-202, Method 213,Test Condition 1
- (100 G’speak for 6 milliseconds).
- Vibration :Mil-STD-202,Method 201(10-55Hz); Method 204,Test Condition C(55-2000Hz at 10G’s
Peak)
- Moisture Resistance: MIL-STD-202,Method 106.
Physical Specification:

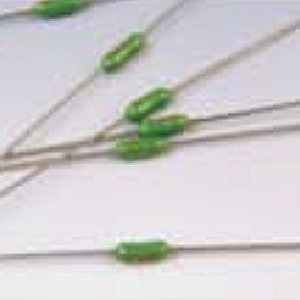

- Materials:Encapsulated,Epoxy-Coated Body;Solder Coated Copper Wire Leads.
- Flammability Rating : UL 94V0
- Solder Parameters : Wave Solder 260°C,10 seconds Maximum.
- Lead Pull Force : MIL-STD-202, Method 211,Test Condition A (will withstand a 1 lb. Axial pull test).
- Approvals : UL,CSA. Approved by METI from 1 through 5 amperes.
