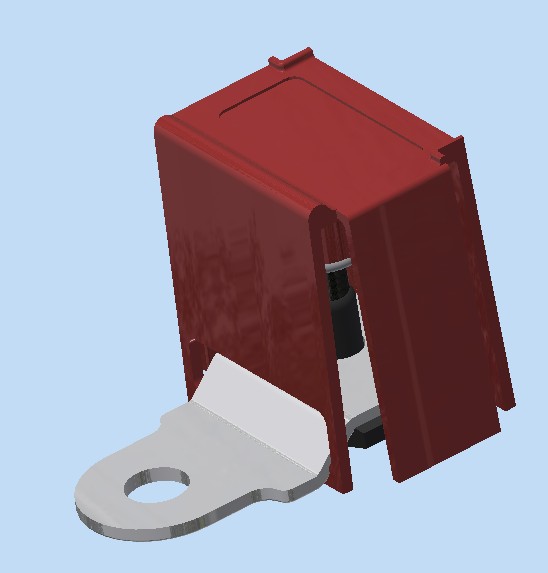

Stud-Mount Fuse Holders

Specifications

• 1.Recommended Fuses : For ZBF Series 2.Material:
• 2.Material:

         a.Cover : TPV(UL94 V-0) , Red

         b.Base: PPS-GF%(UL94 V-0), Black.

         c.Stud:Stainless steel , Zinc Black Plated

         d.Busbar: Cooper alloy Thichness 2.5mm, Tin Plated

         e. Nut:Steel , Zinc Plated

• 3.Recommended Torque:

           M8x1.25 Nut: 14 ± 2 Nm

           1/4-20UNC Nut : 9.8 ± 1.4 Nm

• 4.Current Rating Continuous: 300 Amps
• 5.Current Rating Max: 400 Amps
• 6.Current Rating Max Terminal: 400 Amps
• 7.Input Terminals: M6, M8, M10 Stud Mount Hole
• 8.Mounting Method: M6, M8, M10 Stud Mount
• 9.Output Terminals: 1/4-20UNC and M8x1.25 Stud
• 10.Temperature in Celsius: Operation Temperature: -40 °C ~ +125 °C 11.Storage temperature: -55 °C ~ +125 °C
• 12.Max Voltage Rating: 32V DC
• 13.Application Notes: Fuse must not exceed 75% of rated current

• 1.RATINGS  VOLTAGE:58VDC MAX. AMPERAGE: 300A MAX.

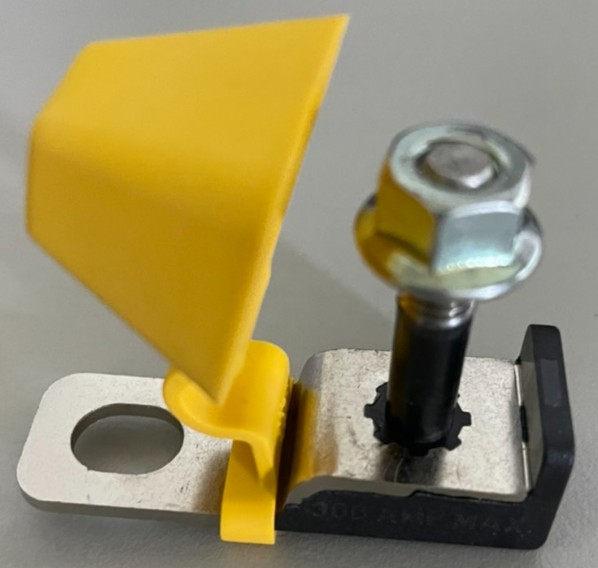

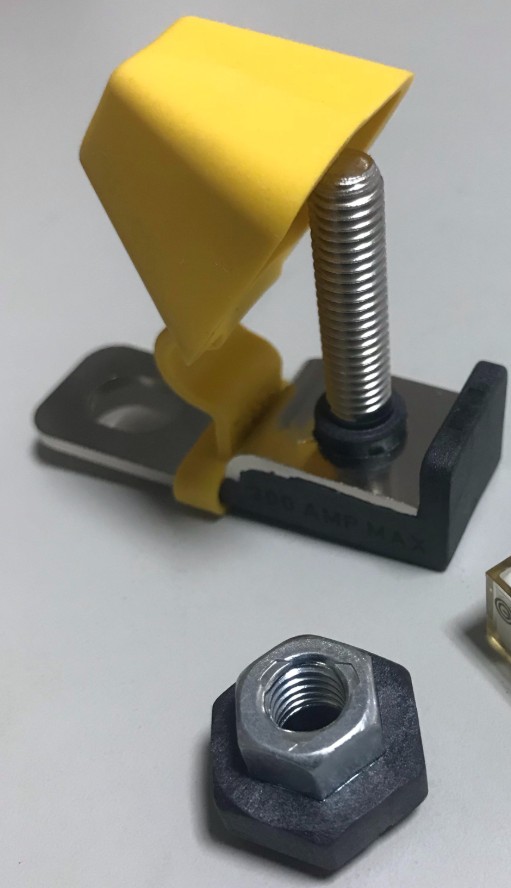

• ZFH MATERIAL:

      a.BODY:THERMOPLASTIC PPS UL94-V0, COLOR: BLACK

      b.BUSBAR MATERIAL : COPPER ALLOY (NICKEL PLATING) THICKNESS 2.5mm

      c.STUD MATERIAL: STAINLESS STEEL

• 3.NUT MATERIAL:NUT-STEEL (ZINC PLATING) ，SELF-LOCKING
• 4.MAXIMUM TORQUE: 12N.m(122.4Kgf-cm)
