• Glass Tube In-Line Holders

Please Click products below, and click Add to Inquiry List for inquiry.
Total of 23 results
  • In-Line Fuse Holdwr
    JEF-714A(UL)

    Specifications

    • For 3AG fuse type
    • Electrical:MAX.30A 500V
    • Wire gauge available: #12~#14 UL1015 wire
    • 2. Material/Color: a.Cap :PA66-GF25 FR / Black b.Body:PBT-GF30 FR /Black c.Spring:Spring: High Carbon Steel Wire d.Terminal: Phosphor Bronze e.
    • 4.Wire Style: UL1015 / UL3321 / UL3266 (Max. 250V)
    • 5. With other wire sizes or lengths available on special order
    • 6.Part comply with RoHS specification

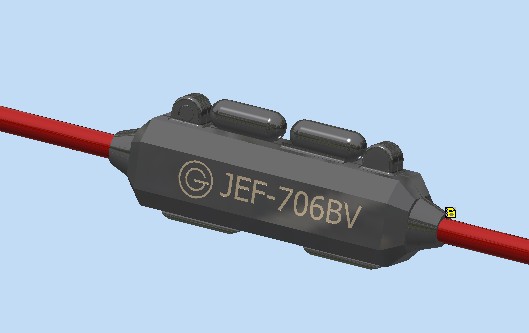

  • In-Line Fuse Holder
    JEF-706BV(UL)

    Specifications

    • FOR 5.2X20mm FUSES
    • Electrical Rating : Max.
    • 20A 600V AC/DC with #14 UL1015/UL3321wire
      15A 600V AC/DC with #16 UL1015/UL3321 wire
    • Insulating Body :Nylon UL94-V0/ Color:Black
    • Terminal:Phosphor Bronze, Tin Plated
    • With other wire sizes or lengths available on special order
    • Part comply with RoHS specification
    • UL Recognized

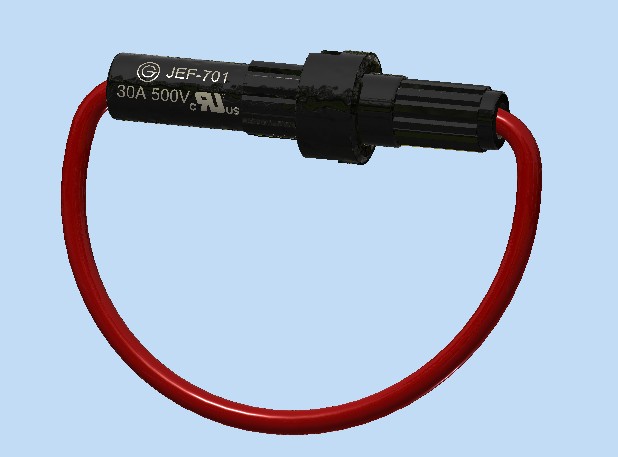

  • In-Line Fuse Holder
    JEF-701(UL)

    Specifications

    • In-Line fuse holder for 3AG fuse
    • Electrical Rating : Max. 30A 500V  AC/DC with #12                                                                                   20A 500V AC/DC with #14
    • Material :
    • a.Cap: PA66-GF25 FR / Black
    • b.Body : PA66-GF25 FR / Black
    • C.Terminal:Copper alloy , Tin plated
    • d.Spring: High Carbon Steel Wire
    • e.Wire Style: UL1015 /   UL3321  /  UL3266 (Max. 250V)
    • UL Recognized
